Nzyme Setup Guide

06 July 2026

This guide walks through setting up both the Nzyme Node and Nzyme TAP on Debian 12 (Bookworm).

Note

This guide was written for Debian 12 Bookworm but also works on Raspberry Pi OS 12 (Bookworm).

Nzyme Node Setup

Install Debian

Download the Debian 12 Bookworm ISO:

https://cdimage.debian.org/cdimage/archive/12.10.0/arm64/iso-cd/

Once the operating system is installed, update the system and install the required packages.

sudo apt update && sudo apt install -y openjdk-17-jre-headless postgresql-15

Download the Nzyme Node package:

wget https://github.com/nzymedefense/nzyme/releases/download/2.0.0-alpha.17/nzyme-node_rpios-12bookworm-noarch-2.0.0-alpha.17.deb

Install it:

sudo dpkg -i nzyme-node_rpios-12bookworm-noarch-2.0.0-alpha.17.deb

Configure PostgreSQL

Launch the PostgreSQL shell:

sudo -u postgres psql

Run the following commands:

CREATE DATABASE nzyme;
CREATE USER nzyme WITH ENCRYPTED PASSWORD 'YOUR_PASSWORD_HERE';
GRANT ALL PRIVILEGES ON DATABASE nzyme TO nzyme;
\c nzyme
GRANT CREATE ON SCHEMA public TO nzyme;
\q

Configure the Node

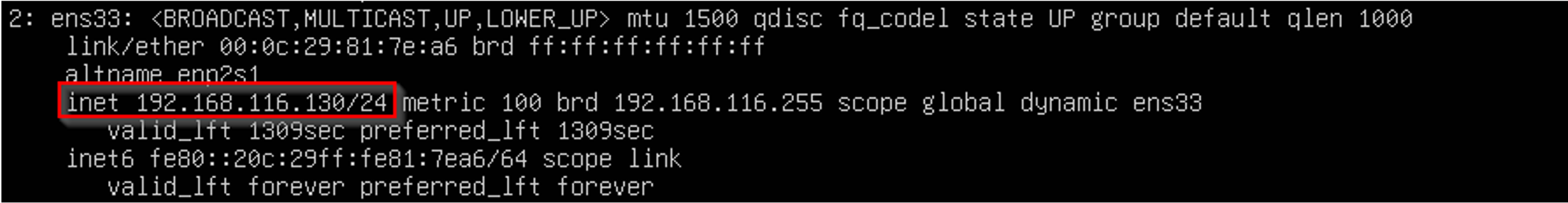

Determine the IP address of the system we are hosting the node on:

ip a

an image of commands

Open the configuration file:

sudo nano /etc/nzyme/nzyme.conf

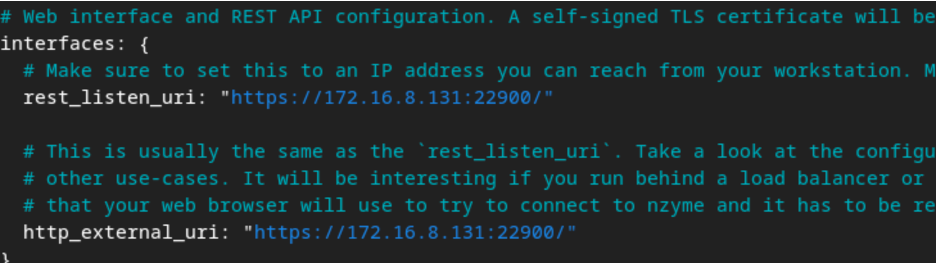

Update the following values:

PostgreSQL password
rest_listen_uri and http_external_uri with the IP address from ip a

Save and exit the file using CTRL + X then Y

Initialize the Database

Run the database migration:

sudo nzyme --migrate-database

Start the Node and Enable it as a Service

Enable the service:

sudo systemctl enable nzyme

Start it:

sudo systemctl start nzyme

Verify it is running:

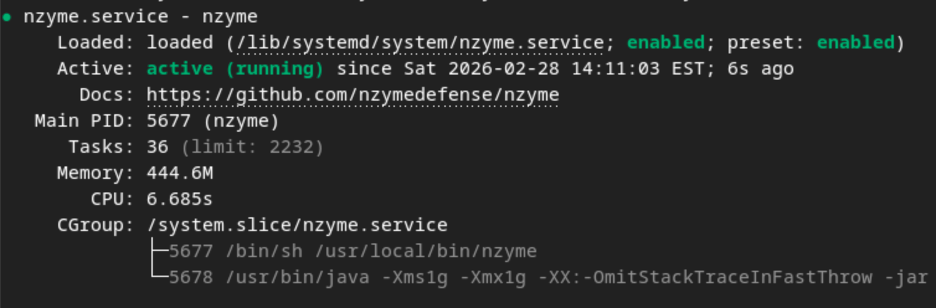

sudo systemctl status nzyme

an image

Access the Web Interface

After a few minutes the web interface should become available.

Connect to the Web Interface:

https://<NODE_IP>:22900

Create an administrator account.

The email address does not need to be a real email address.

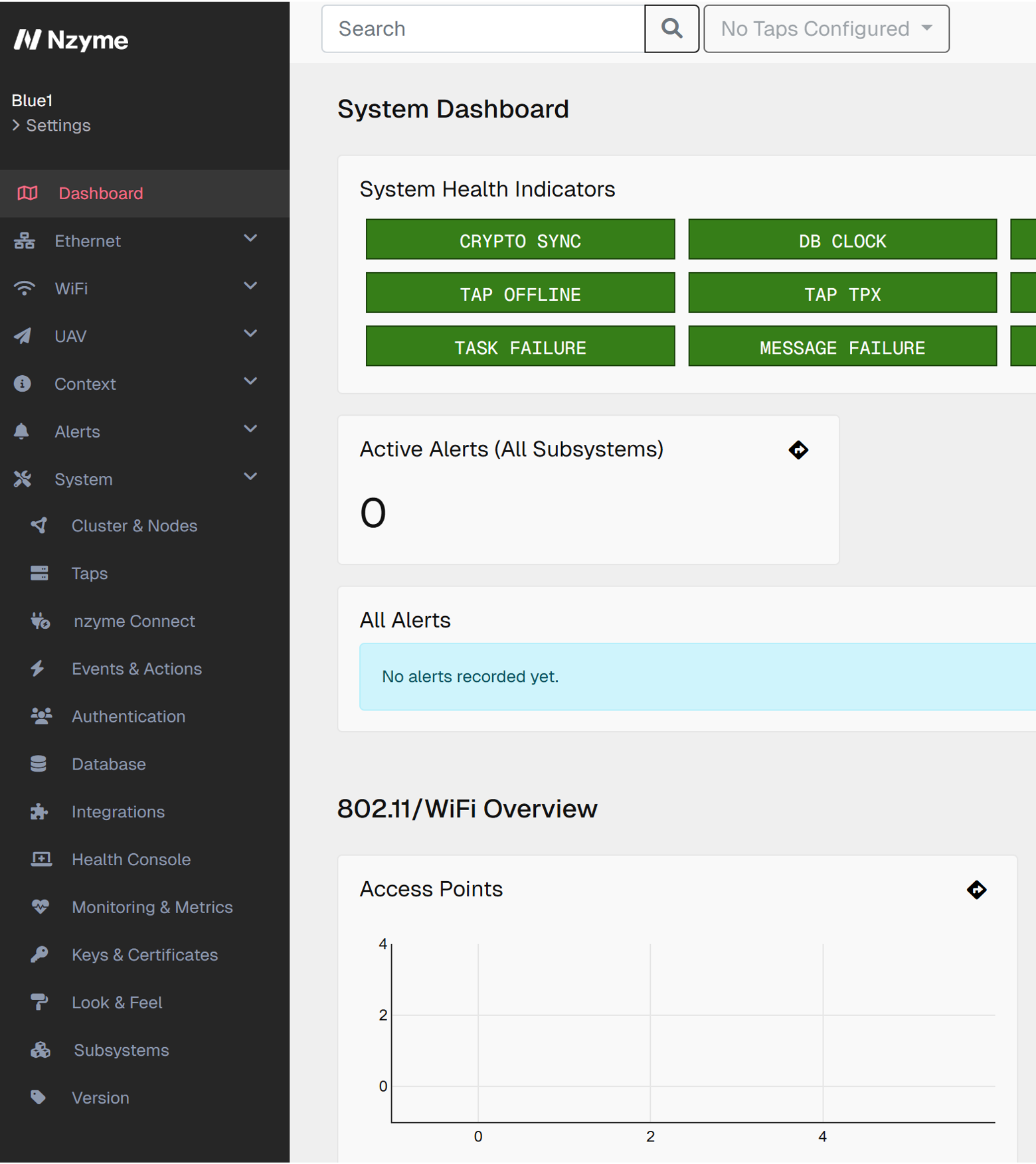

Once inside the web ui, you should see the landing page.

an image

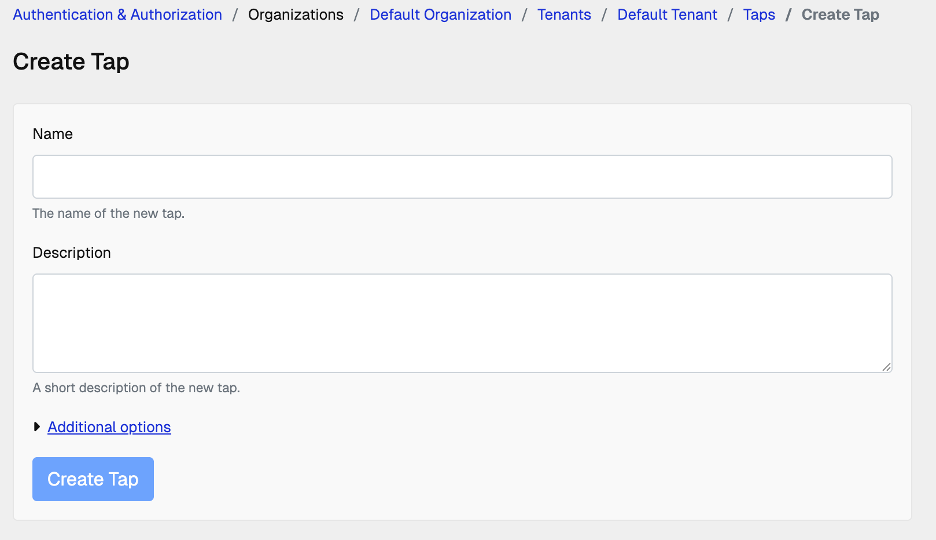

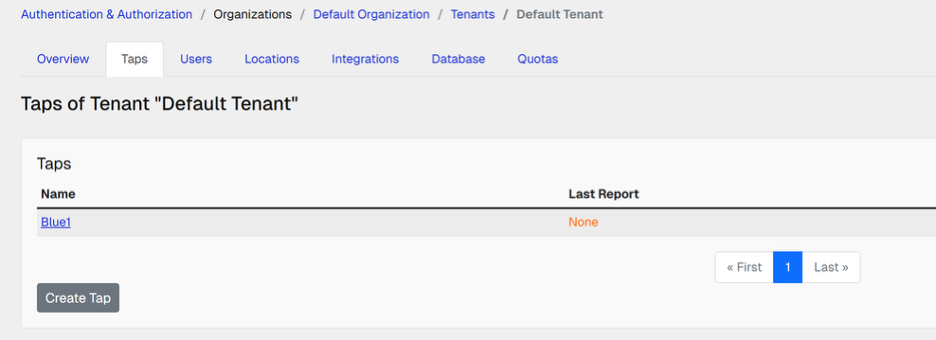

Create a TAP

From the web interface:

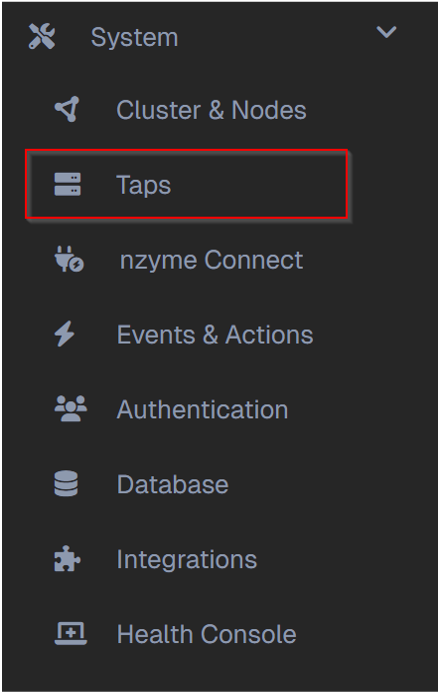

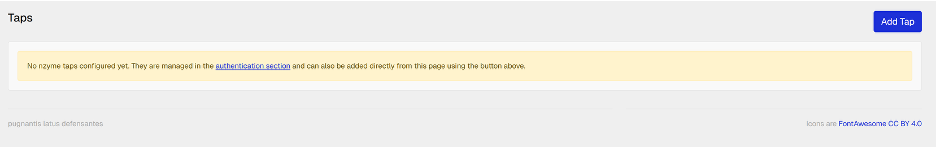

Expand System and Open TAPs
Click Add TAP
Give the TAP a name and description
Open the newly created TAP

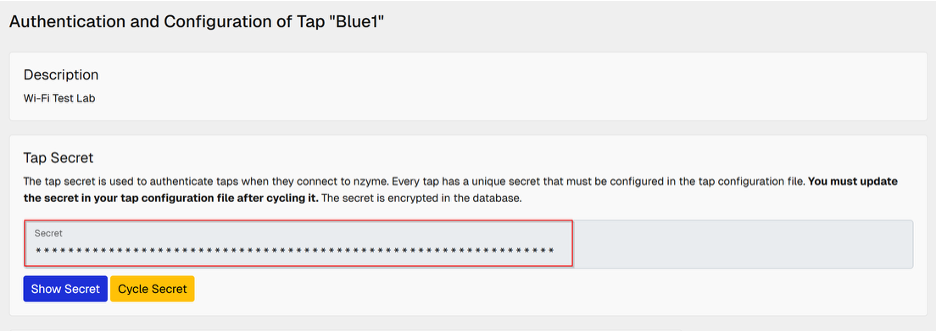

Copy the TAP Secret You will need this secret later when configuring the TAP.

Nzyme TAP Setup

For this lab, the TAP is installed on the same system as the Node.

Note

TAPs can also be installed on additional systems (such as Raspberry Pis) to increase wireless coverage.

Download the TAP package:

wget https://github.com/nzymedefense/nzyme/releases/download/2.0.0-alpha.17/nzyme-tap_rpios-12bookworm-arm64-2.0.0-alpha.17.deb

Install it:

sudo dpkg -i nzyme-tap_rpios-12bookworm-arm64-2.0.0-alpha.17.deb

Configure the TAP

Open the configuration file:

sudo nano /etc/nzyme/nzyme-tap.conf

Update the following fields:

Setting	Value
`leader_secret`	TAP Secret copied from the web interface
`leader_uri`	IP address of the Node
`accept_insecure_certs`	`true`

an image

Why set accept_insecure_certs to true?

Nzyme uses HTTPS with a self-signed certificate by default. Unless you replace it with a trusted certificate, this setting should remain enabled in lab environments.

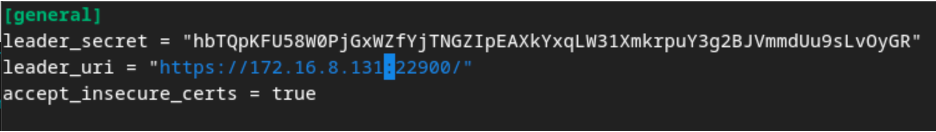

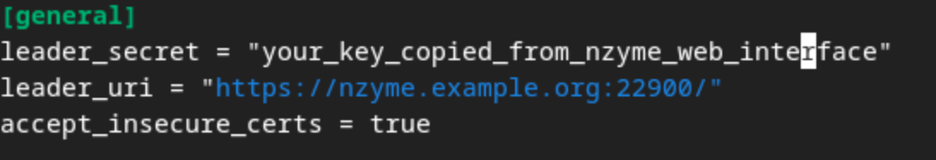

The configuration should look like the picture below once you input all the required information.

an image

Save and exit the file using CTRL + X then Y

Configure Ethernet

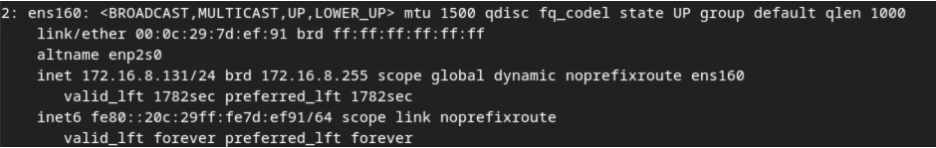

Determine the interface information:

ip a

You will need:

Interface name
CIDR subnet

an image

Open the configuration again:

sudo nano /etc/nzyme/nzyme-tap.conf

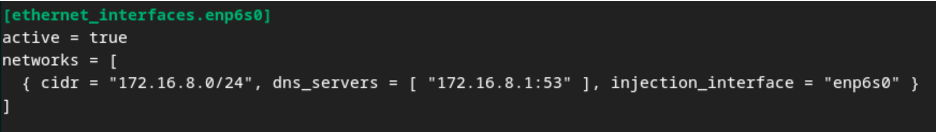

Update the Ethernet section using data from ip a:

ethernet_interfaces.<interface_name>
CIDR
DNS servers
injection_interface

For this lab, the injection interface should normally be the same as the Ethernet interface.

an image

Save the configuration.

Configure the Wireless Interface

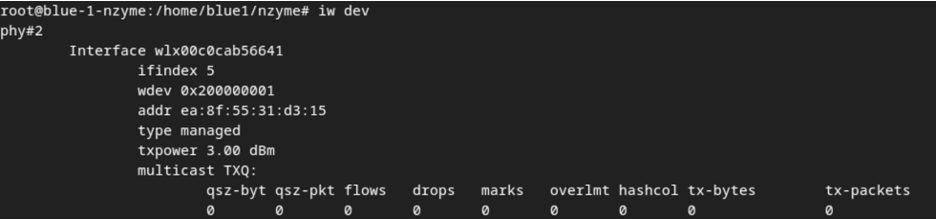

List wireless devices:

iw dev

an image

Record:

Wireless interface name
PHY number

Example:

Interface wlan0
phy#2

Check the capabilities of the adapter:

iw phy phy# info

Replace phy# with the PHY number reported by iw dev.

Verify which frequency bands the adapter supports:

the output is large and you will need to scroll through it.

2.4 GHz
5 GHz
6 GHz

Configure Regulatory Domain (Region)

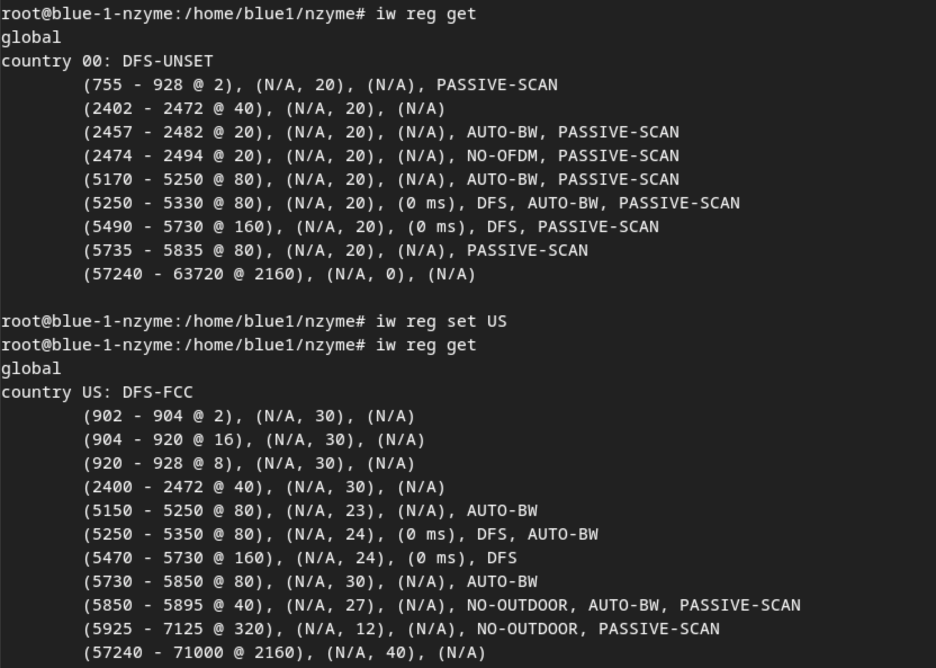

Check the current regulatory domain (Region):

iw reg get

For this guide, set it to the United States:

sudo iw reg set US

an image

Configure Wi-Fi Monitoring

Edit the TAP configuration:

sudo nano /etc/nzyme/nzyme-tap.conf

Locate the wifi_interfaces section.

Update the interface name to match the output from iw dev.

Examples:

wifi_interfaces.wlan0

wifi_interfaces.wlx00c0cab56641

an image

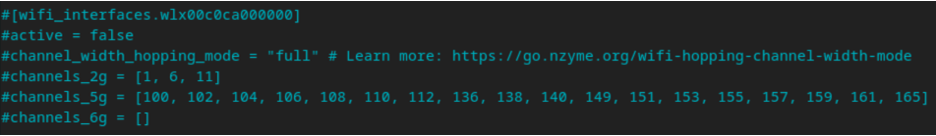

Using a Single Wireless Adapter

If only one adapter is installed:

Set the unused interface to:

active = false

or comment out the unused interface entirely.

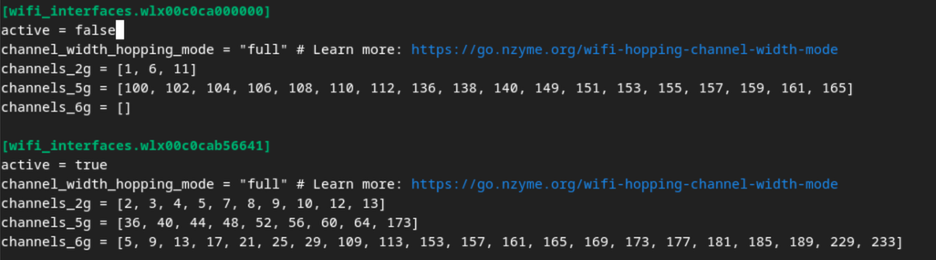

Copy the full channel list into the interface you are using.

an image

Important

Verify that every configured channel is legal in your regulatory domain. Some 5 GHz channels available in other countries are not permitted in the United States.

Save the configuration.

Start the TAP

Enable the service:

sudo systemctl enable nzyme-tap

Start it:

sudo systemctl start nzyme-tap

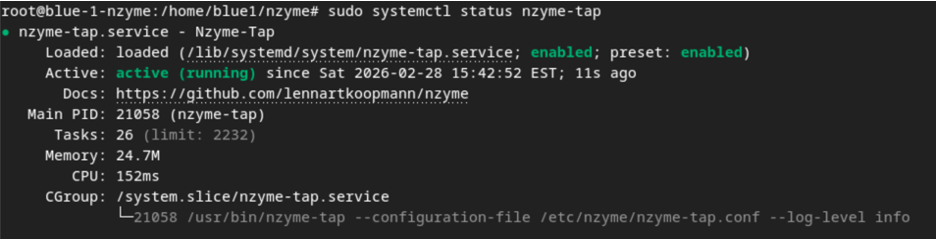

Verify that it is running:

sudo systemctl status nzyme-tap

an image

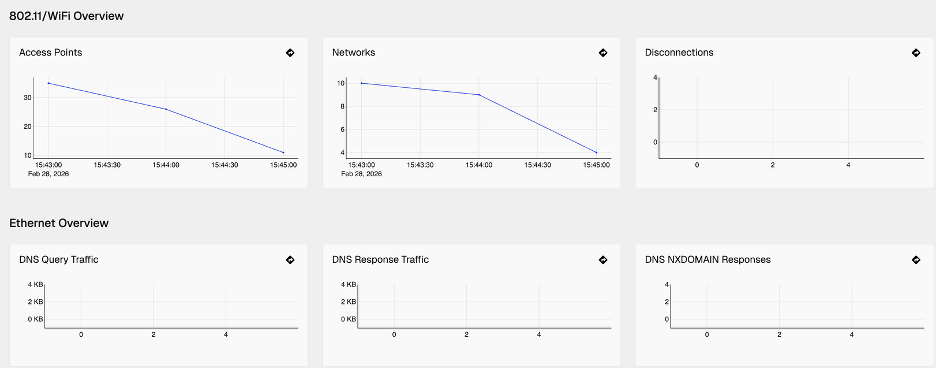

Verify Operation

Return to the Nzyme web interface.

If everything is configured correctly, the TAP should appear as connected and begin reporting wireless activity.

an image

Command Round Up

Show IP Configuration

ip a

Show Wireless Interfaces

iw dev

Show Wireless Capabilities

iw phy phy2 info

Show Regulatory Domain

iw reg get

Set Regulatory Domain

sudo iw reg set US

Configuration Files

Node configuration:

/etc/nzyme/nzyme.conf

TAP configuration:

/etc/nzyme/nzyme-tap.conf

Services

Node:

sudo systemctl status nzyme

Restart:

sudo systemctl restart nzyme

TAP:

sudo systemctl status nzyme-tap

Restart:

sudo systemctl restart nzyme-tap
